Outdoor P8 Mobile Advertising Led Screen Truck Mounted Led Display
Product advantage:
1. We provide the upper box including the basic equipmet without chassis as well as the LED screen and basic equipment so that so you could fix and install them on your chassis or your box van.

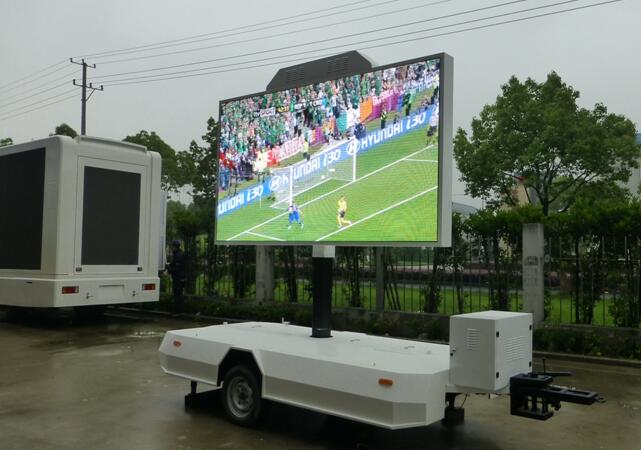

2. Our LED display vehicles can be customizable. We provide LED display trucks, LED display trailer, LED display semi-trailer, etc.

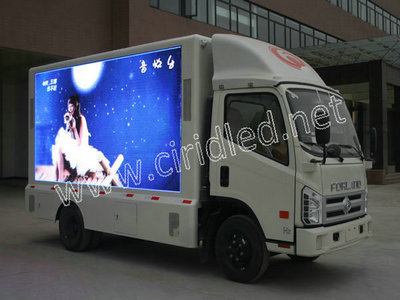

3. The LED display trucks could be of one full color side screen, two full color side screens, three full color side and rear screens. Any combinations are available between full color screen, monochrome color screen (usually rear side), roller screen, and hydro cylinder lifting (usually for the full color screen in left side or right side).
4. The pixel's pitch for the LED screen could be P16, P10, P8, P6, P5, P4 etc.
5. The area of the left or right screen mainly ranges from 3.22 m3 to 12.2 m3.
The basic equipment includes silent generator, aluminum checkered plate wall, waterproof leather or wooden floors, safe and intelligent switch power distribution system, integrated electromechanical control, lighting, circulating ventilation fans, shockproof computers, and gigabit media control system, stereos, one amplifier, four waterproof column loud speakers, and other tiny accessory facilities within the body.
Product parameters:
| Item | Value |
| Model NO. | CDN-100 |
| Pixel Pitch | 10 |
| Pixel Density (dots/sqm) | 10000 |
| LED Type | SMD3535 |
| Viewing Angle | H:120 V:120 |
| Brightness (nits) | 5000～6500 |
| Refresh Rate | 960 |
| Module Size(mm) | 320*160 |
| Cabinet Size | 960*960 |
| Cabinet Material | Aluminum |
| Cabinet Weight | ≈ 35KG/SQM |
| Power Consumption (Avg./Max. W/㎡) | 400/980 |
| IP Grade | IP65/54 |
| Operating Temp/Humidity | -20℃～45℃ 10～90%RH |
| Storage Temp/Humidity | -25℃～50℃ 10～90%RH |
| Lifetime(hours) | ≥50000(Nomal Temp) |
Product Tags:
|
|
Outdoor P8 Mobile Advertising Led Screen Truck Mounted Led Display Images
|
